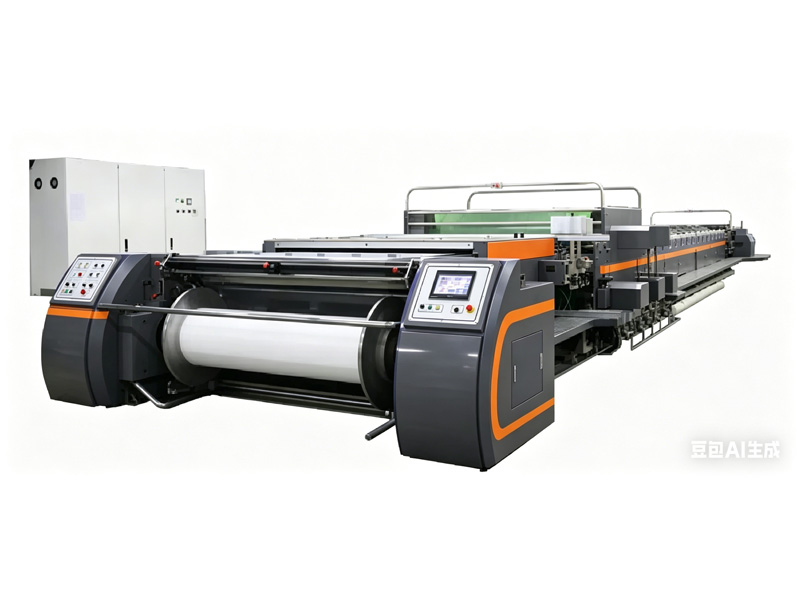

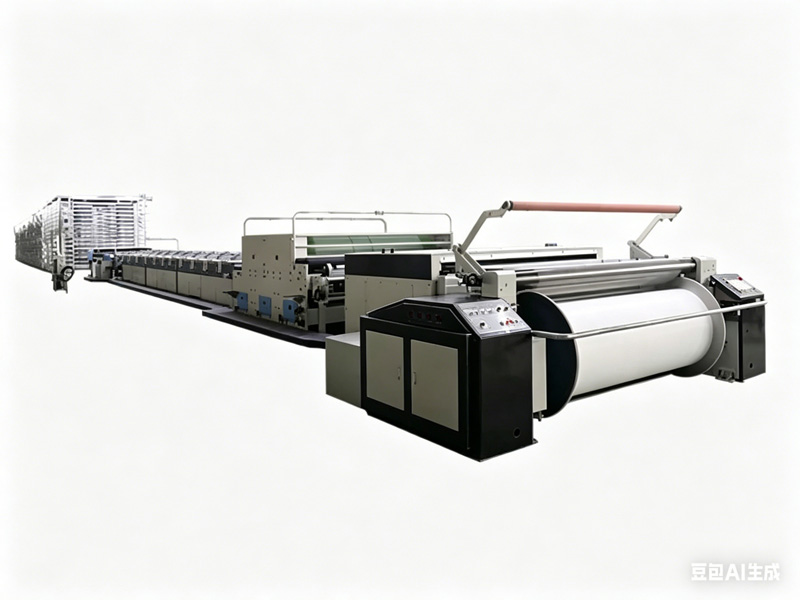

GA392 warp sizing and beaming machine for filament yarn

GA392 warp sizing and beaming machine for filament yarn


It is suitable for polyester filament, viscose filament and chemical fiber filament yarn. The machine features stable running, even sizing effect, constant tension control and high beam forming quality.

WhatsApp: +8615853288520

Email: info@weavetechsupply.com

Product Description

GA392 warp sizing and beaming machine for filament yarn

Short Introduction

This integrated machine is specially designed for filament yarn production, combining warping, sizing and beaming in one unit.

It is suitable for polyester filament, viscose filament and chemical fiber filament yarn. The machine features stable running, even sizing effect, constant tension control and high beam forming quality.

It greatly improves production efficiency, reduces yarn breakage, saves labor and floor space. It is the ideal professional equipment for textile mills to produce filament fabric efficiently and steadily.

Product Specifications

Item Technical Parameter
Machine Name Filament Yarn Warping Sizing Beaming Machine
Application Yarn Polyester filament, Viscose filament, Chemical filament yarn
Effective Working Width 180cm / 200cm / 220cm / 230cm
Design Speed 60~120 m/min
Working Speed 50~100 m/min
Sizing Tank Structure Single tank / Double tank optional
Sizing Method Dip sizing + Double squeeze sizing
Squeeze Roller High hardness rubber roller, pneumatic pressure adjustment
Drying System Steam heating / Electric heating optional
Tension Control Closed-loop constant tension control
Warp Beam Structure Front feeding, rear rolling, neat beam forming
Control System PLC + Touch screen, frequency conversion drive
Core Advantage Uniform sizing, low yarn breakage, energy saving, easy maintenance
Matching Equipment Filament warper, air jet loom production line
