Direct warping machine for gauze
Direct warping machine for gauze
GA126 model high speed gauze warping machine(suitable for air jet loom). Machine head:Variable frequency speed control. Electronic length gauge, PLC program control, touch screen human-machine interface.
WhatsApp: +8615853288520
Email: info@weavetechsupply.com
Product Description
Direct warping machine for gauze
Product Specification

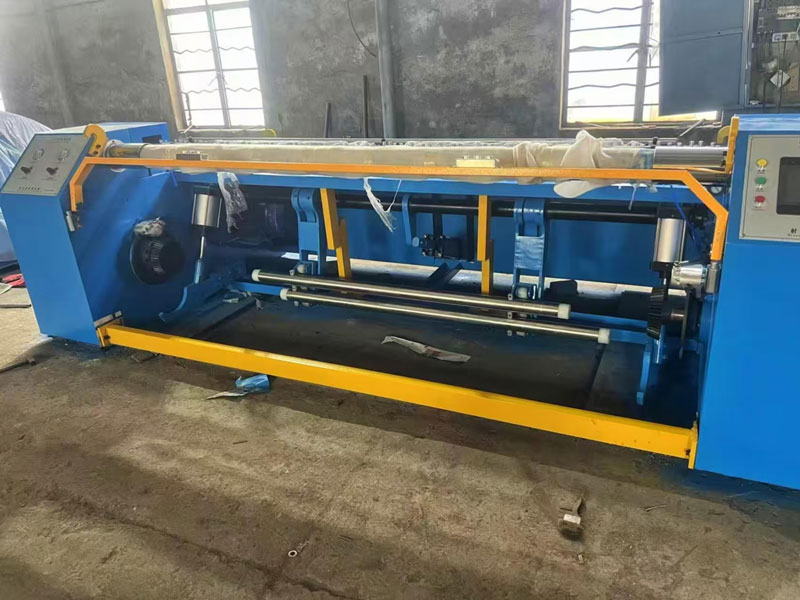

GA126 model high speed gauze warping machine(suitable for air jet loom)
- Machine head:Variable frequency speed control
- Electronic length gauge, PLC program control, touch screen human-machine interface.
- Pneumatic lifting shaft, directly driven by motor,
- Swing reed, a W-shaped telescopic reed, and adjustable width.
- Fixed width is also available (linear speed 450 m/min).
Product Specifications
- scope of application: 21S,30s, 40S Pure cotton yarn
- Working width : 1650-1850mm
- Warp beam size:190cm x 800mm(diameter)
- Speed:0-600m/minitue(Actural speed is 200-400m per minitue,depends on yarn quality)
- meas u re me nt er ro r : ≤ 0 . 05 %
- Broken end braking distance: ≤ 3.5m（ at 600 m/ min ）
- Yarn pressing principle
The roller applies parallel pressure is balanced and adjustable ,
ensuring uniform winding density throughout all layers and
eliminating conical ends of the package .
- Method of counting length:Using a measuring roller interconnected with the main shaft for length measurement
- Full spindle length error: ≤0.05%
- End breakage rate of warping: ≤ 0 .3 pieces / 100 pieces 10000 meters;
Reed teeth:depends on customer’s warp density,we will give more
