Sectional warping machine
Sectional warping machine
HT236T Sectional Warping Machine Working Width: 2300mm,2800mm,3600mm; Beam Diameter <1000mm; Bobbin Qn’ty: 640 720 840(as your demand).
WhatsApp: +8615853288520
Email: info@weavetechsupply.com
Product Description

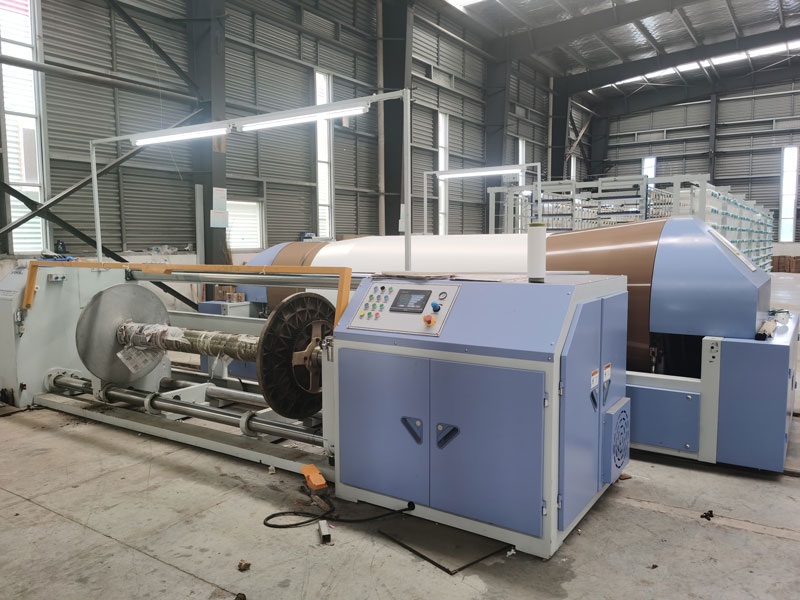

Sectional warping machine
| Item | Detail | Parameters |
| Main technical parameter | Working Width | 2300mm,2800mm,3600mm |
| Beam Diameter | <1000mm | |
| Bobbin Qn’ty | 640 720 840(as your demand) | |
| Spindle Pitch | 270x270mm（adjustable） | |
| Number of plies | 8 | |
| Warping Speed | <600m/min | |
| Beaming Speed | <150m／min | |
| Tension of Reverse | ≤6000 N | |
| Strip width | 0~400mm | |
| Braking Length | ≦3.0 m | |
| The operating display | Various process parameters | |
| warping operation table type | Constant distance winding, Spacing reed automatically move. | |
| Transmission Power | 1KW(servo motor | |
| Speed | Automatic tracking | |
| Starting Point | Automatic | |
| Spacing reed | Type“一” | |
| Guiding Roller | Precision Aluminum Alloy | |
| Winding Head | Cylinder Diameter | 1m |
| Cylinder Length | 2400mm | |
| Cylinder Thickness | 10 mm | |
| Angle of Cone | 1：8 | |
| Warping Motor Power | KW | |
| Frequency Converter Power | KW | |
| Reverse | Reverse Motor Power | KW |
| Frequency Converter Power | kw | |
| Control of reverse tension | Steel belt damp | |
| Way of Doff | Pneumatic | |
| Safeguard | Laser Beam | |
| Tensioner | Double-column tensioner | |
| Automatic Stop | IR | |
| Bobbin Change | Revolution Door | |

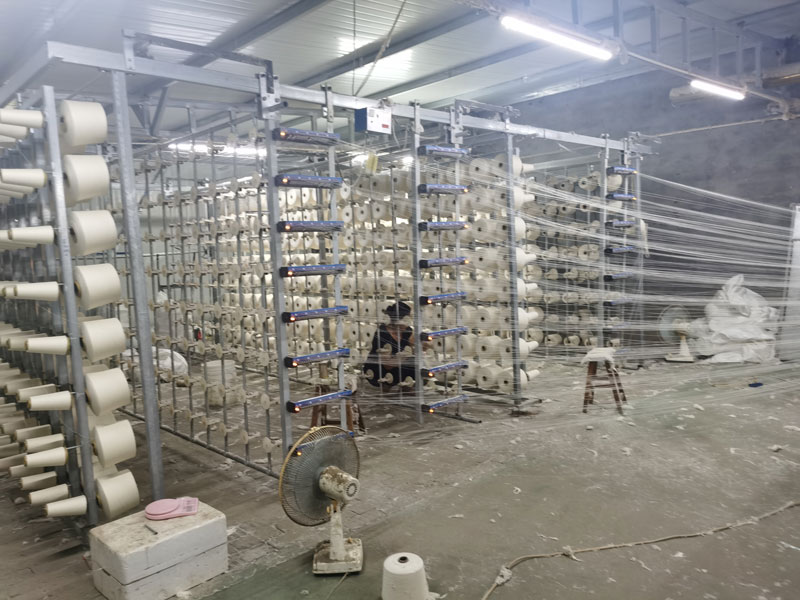

| Creel | Rectangle | |
| Others | Warping Tension Control | Tensioner on the Creel |
| Separator | Equipped | |
| Reeds Bar | Equipped | |
| Clamps | Equipped | |
| Spacing Reed | Equipped |
Product Specifications
| No | Item | Brand |
| 1 | CPU | SIEMENS |
| 2 | Inverter | YASKAWA |
| 3 | Motor | WNM |
| 4 | Touch Screen | WEILUN |
| 5 | Pneumatic parts | AIRTAC |
| 6 | Bearing | NSK |
| 7 | Power supply and related electric parts | SIEMENS/SCHNEIDER |
| 8 | Servo motor | YASKAWA |
