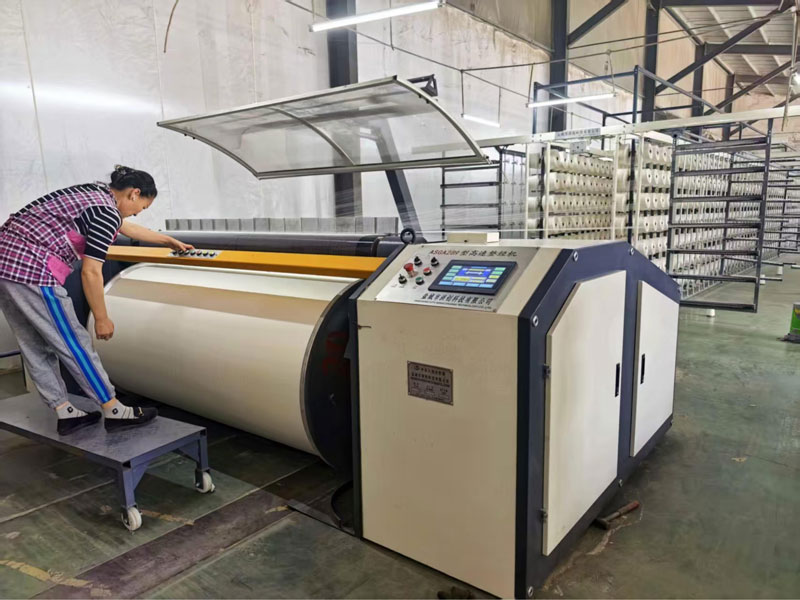

High speed batch warping machine

1. Working width: 1800mm/2000mm/2400mm
2. Applicable warp beam flanger diameter: φ10
3. Maximum warping speed: 100-1000m/min.
4. Winding density: 0.3-0.65g/cm.
5. Braking mode: pneumatic and hydraulic clamp braking via the shaft and pressure roller, and electromagnetic braking for yarn guide.
6. Braking distance: ≤ 3m (at 700m/min)
7. Main motor power: 15KW
8. Length measuring method: when the pressure roller is in normal operation, the length of the spindle is auxiliary when the pressure roller is disengaged.
9. Length measurement accuracy grade: 0.1%
10. Pressurization mode: the oil cylinder is connected with the swing arm and the pressure roller for pressurization, and the pneumatic disc brake is used for auxiliary damping pressurization.
11. Telescopic reed type: “W” type, which can swing up and down and left and right.
12. Reed swing range: 0-40mm adjustable.
13. Reed swing adjustment: manual adjustment
14. Reed swing frequency: 15 times/minute.
15. Reel expansion mode: electric
16. Reel centering mode: electric
17. Clamping mode of warp beam: electric screw tapping.
18. Operating station: touch screen bumper button
19. Overall dimensions: 3908mm (length) *1860 (width) *2043 (height) for

1800mm warping machine
